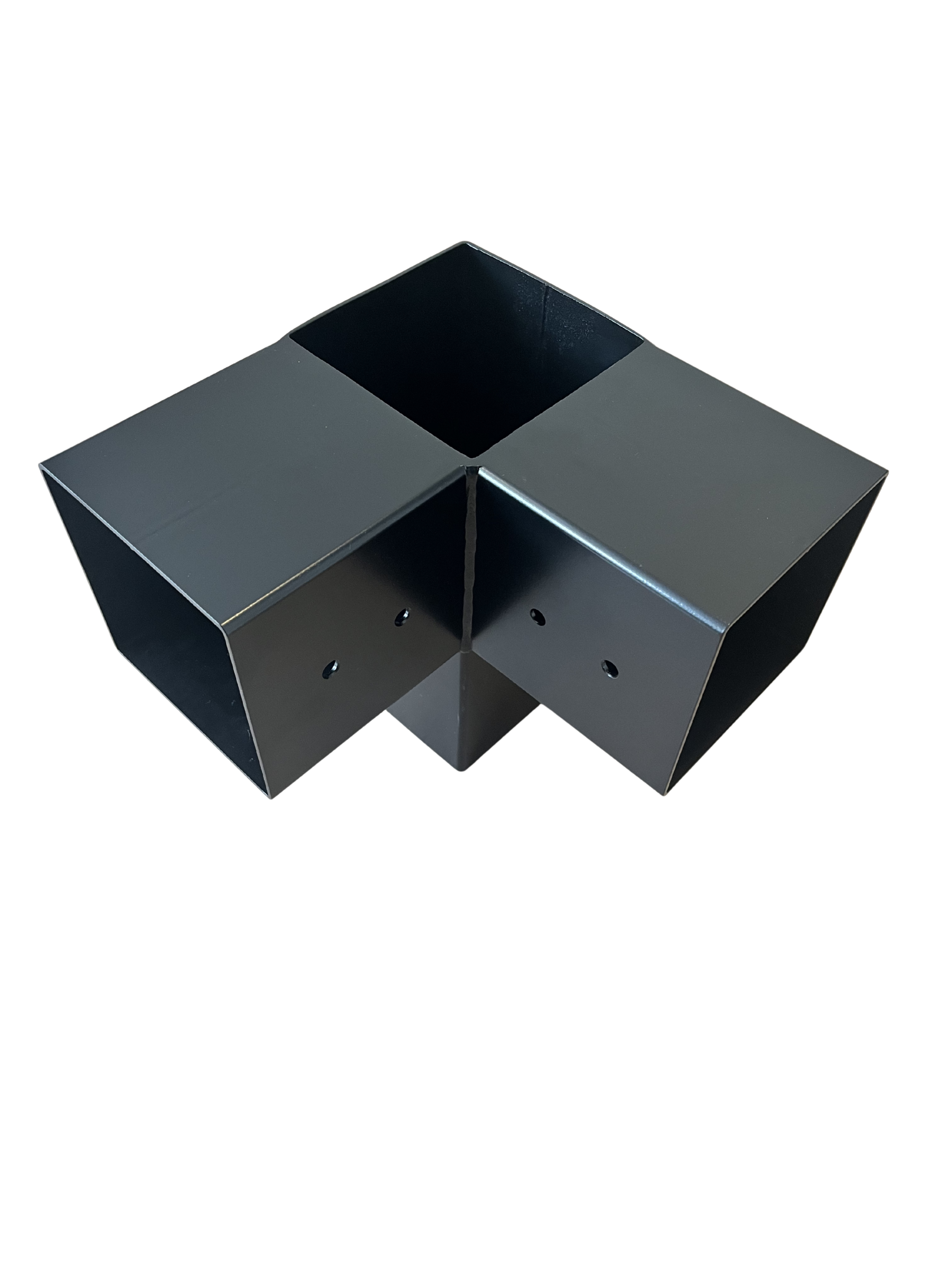

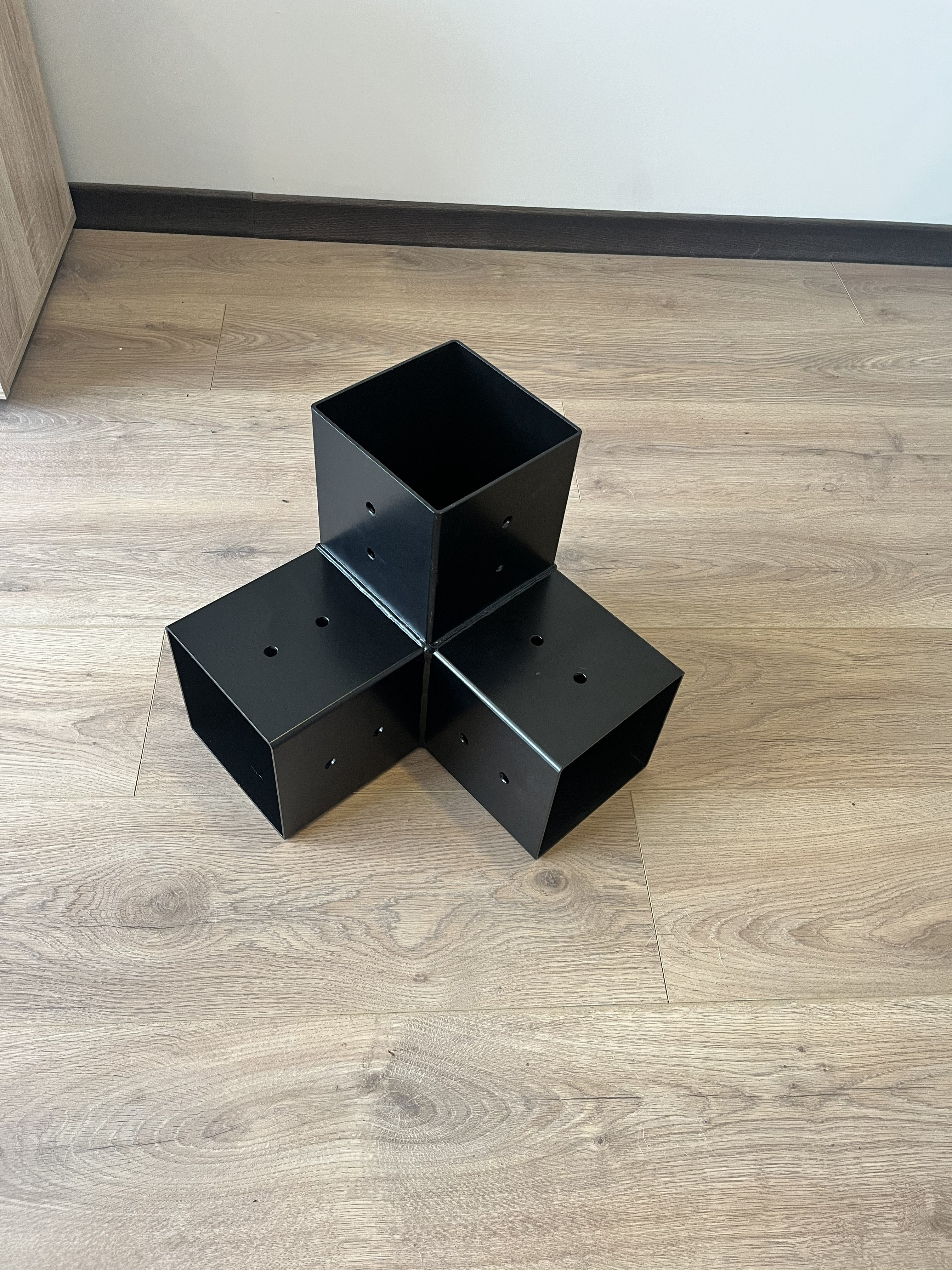

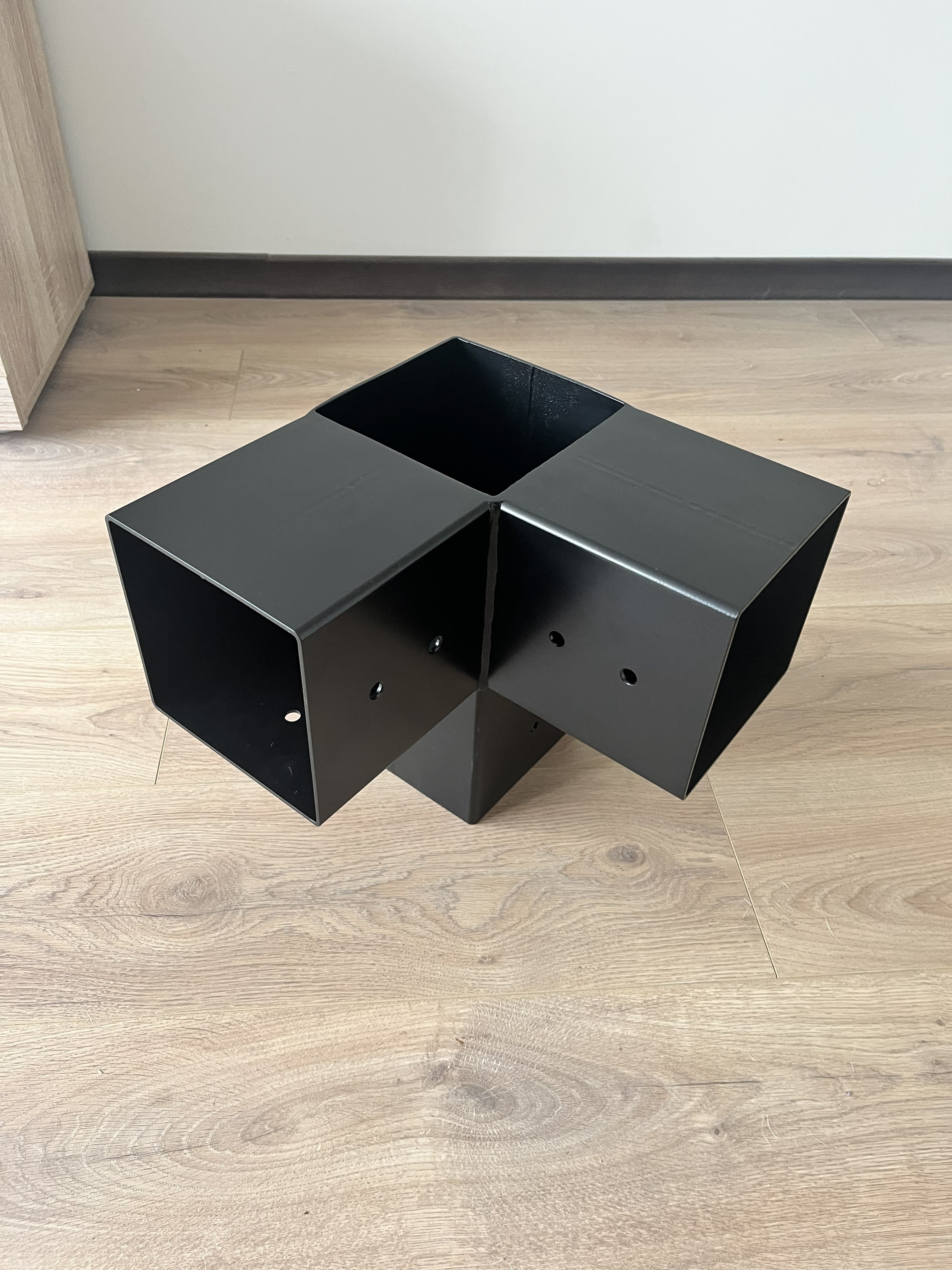

3-way Corner Bracket for Canopy (145x145mm lumber)

Modular solution for canopy, to easy assemble it! 🙂

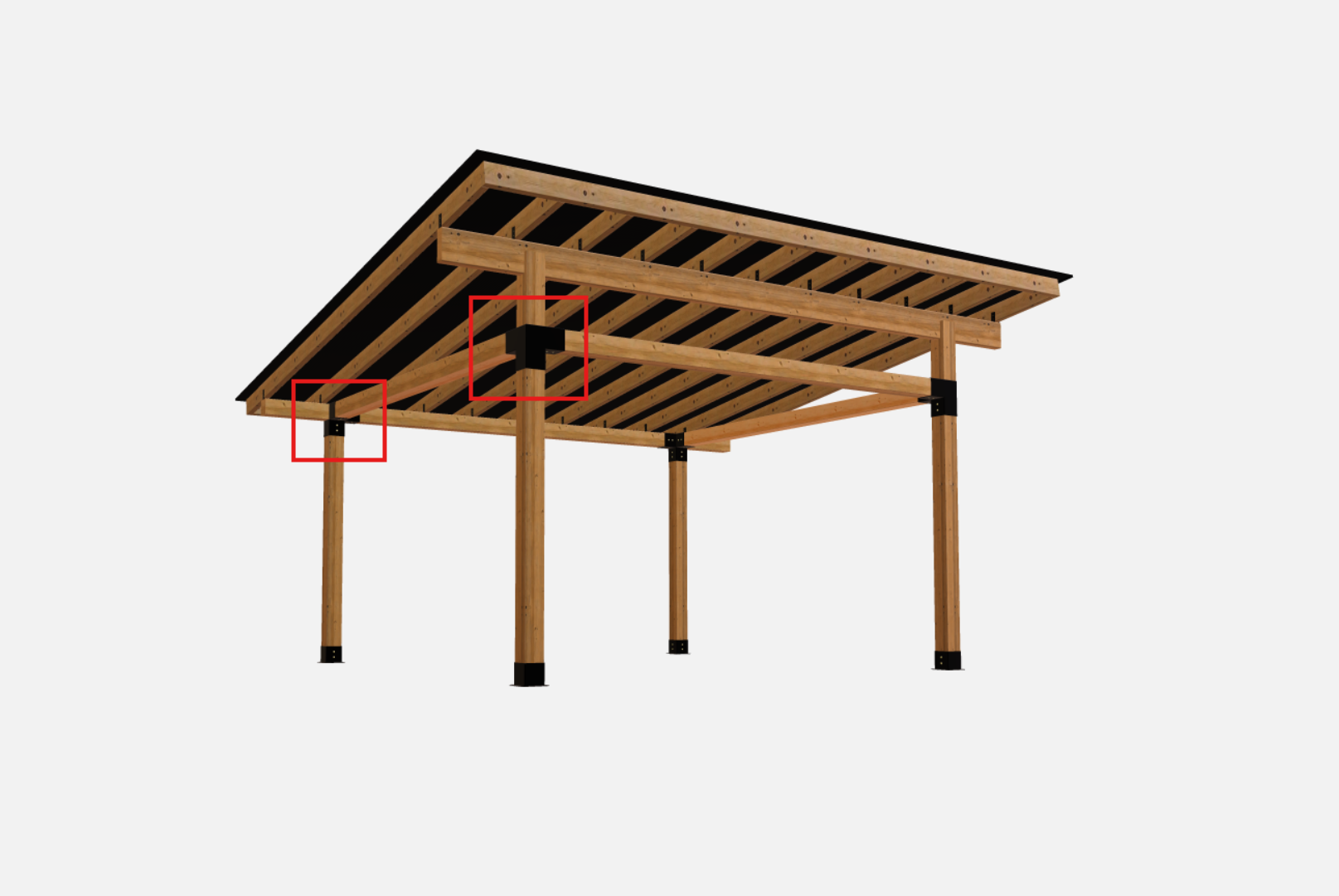

The bracket is designed for corners to connect 3 beams at a 90° corner, but at the same time allowing to make roof overhangs and to control slope of the rooftop.

FEATURES

• 3mm thick steel - stronger than any competitors product; 💪
• Latvian Made Brackets;
• Weather-Ready: Powder Coated RAL9005; 🖤
• Laser-cut and fully welded, not spot welded;
• No logos on product, we respect our clients;
• No extra unused fastening holes, no way to split wood by too many screws;
• Screw fasteners on the inner edges.

SPECS

• Category: (145x145mm lumber);
• Size Inside(Interior): 144mm x 144mm;
• Size Outside (Exterior): 150mm x 150mm;
• 3mm thick steel;
• Overall Size (1 Pc.): LxWxH: 300mm x 300mm x 300mm;
• Color: Black (RAL9005);
• Fastening Holes: 10mm.

INCLUDED

• 1 x 3-way Corner Bracket for canopy;

• Wood;
• Screws, but you can get it  here!

WOOD

• Our 150x150mm brackets accommodate dressed lumber, best used for 145x145mm wood.  Bracket size Inside (interior) is 94mm x 94mm, so we recommend to sand the tip of 145x145mm lumber a little bit, so it fits perfectly, so that bracket is properly used. In some cases even 145x145mm lumber fits perfectly, it depends where you get your wood.
• We recommend taking a bracket with you when you purchase your wood to test fit.

Tip: Ensure lumber is fully inserted into the bracket cavity,  we recommend to make marks on timber for proper installation.
